Description

Continuous Flow

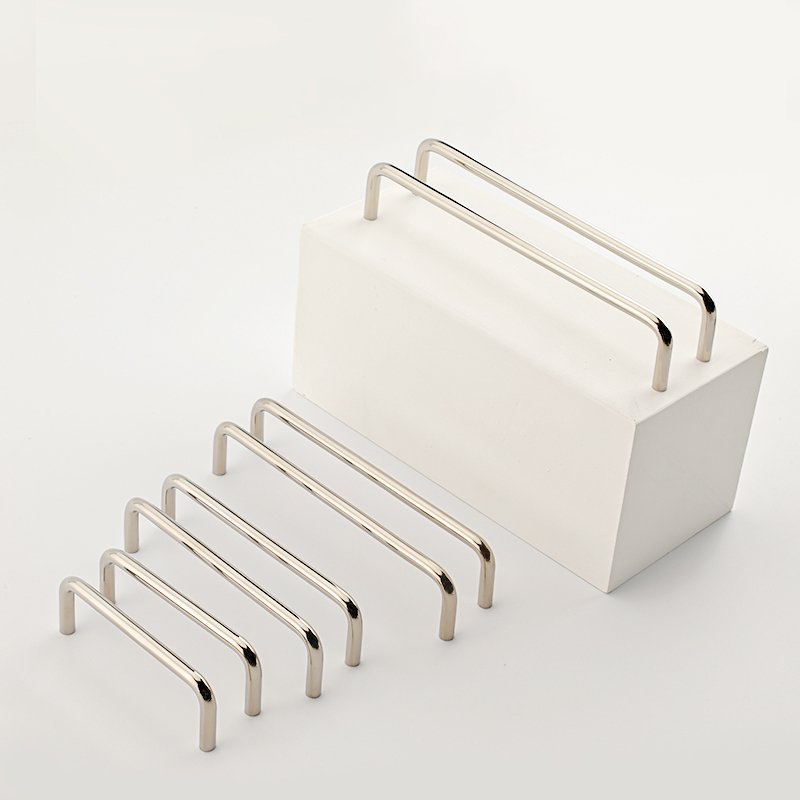

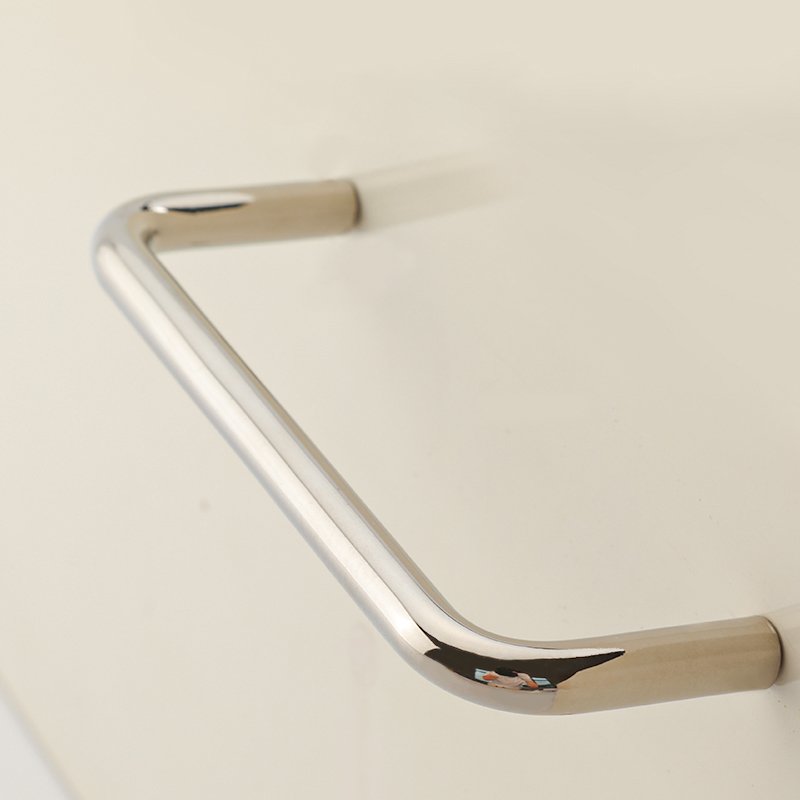

Defined by a single, unbroken line of solid metal, the Arc handle series embodies the essence of minimalist fluidity. The design features a smooth cylindrical bar that curves seamlessly at 90 degrees to meet the cabinetry, creating a soft, approachable silhouette free of sharp edges. Available in a cool, mirror-like Polished Titanium Silver or a warm Satin Brass, this comprehensive collection spans six sizes, offering a cohesive architectural rhythm for everything from narrow drawers to tall pantry doors.

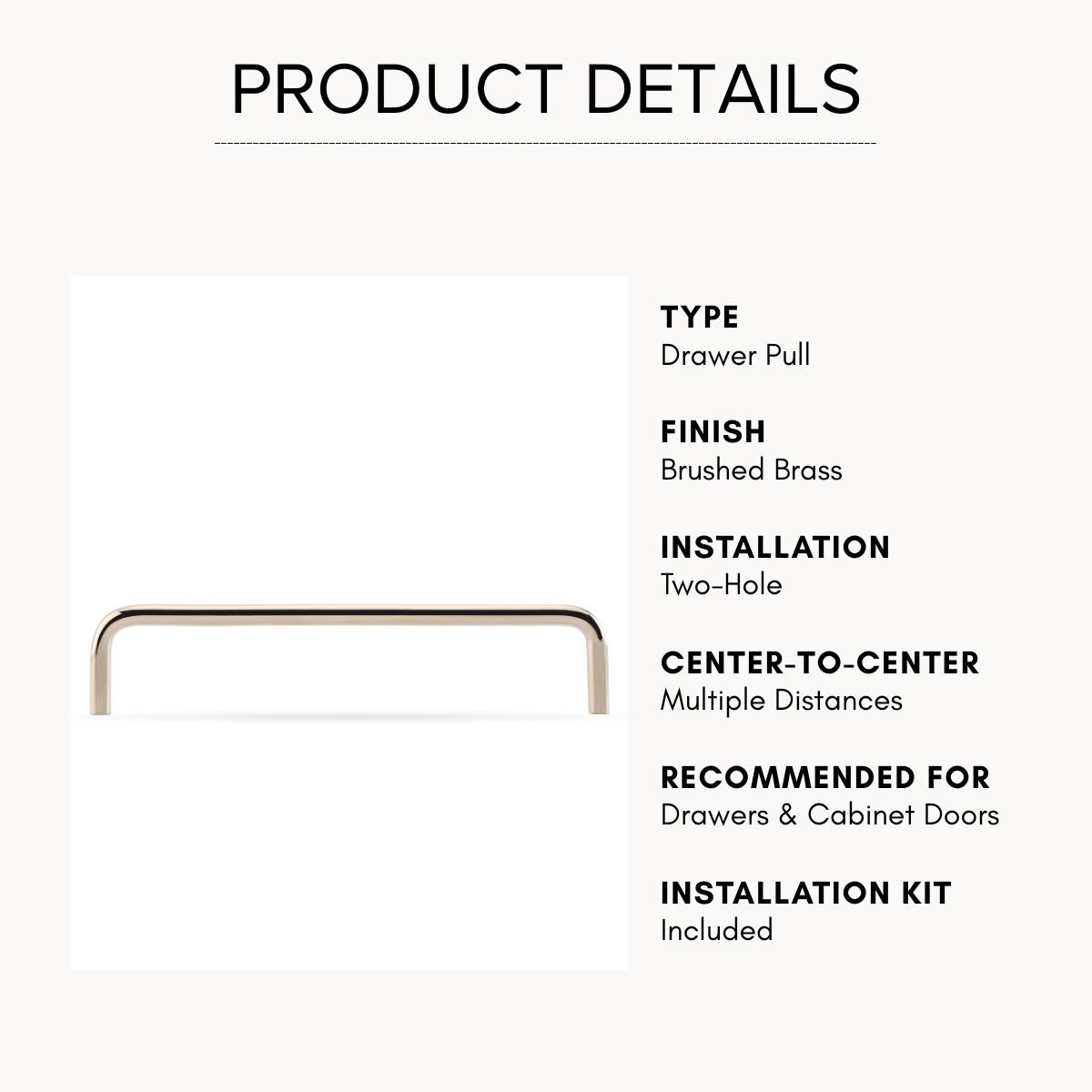

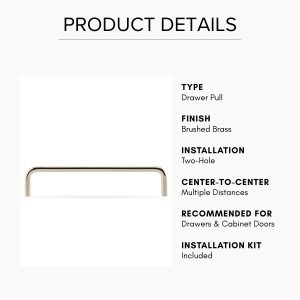

• Type: Cabinet Handle / Drawer Pull

• Finish: Polished Titanium Silver, Satin Brass

• Installation: Two-Hole (Variable Centers)

• Dimensions:

  • Small: Centers 3.78″ / Overall Length 4.17″ / Projection 1.66″

  • Medium: Centers 5.04″ / Overall Length 5.43″ / Projection 1.16″

  • Large: Centers 6.30″ / Overall Length 6.69″ / Projection 1.66″

  • Extra Large: Centers 7.56″ / Overall Length 7.80″ / Projection 1.66″

• Material: Solid Brass / Metal Alloy

• Recommended For: Kitchen Drawers, Pantry Doors, Wardrobes, Bathroom Vanities

• Installation Kit: Included

Ideal for:

• Child-friendly households (no sharp corners)

• Modern minimalist kitchens requiring sleek, uninterrupted lines

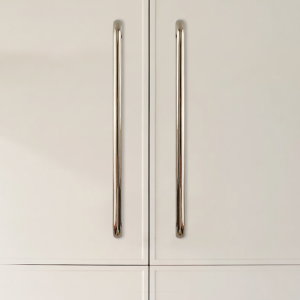

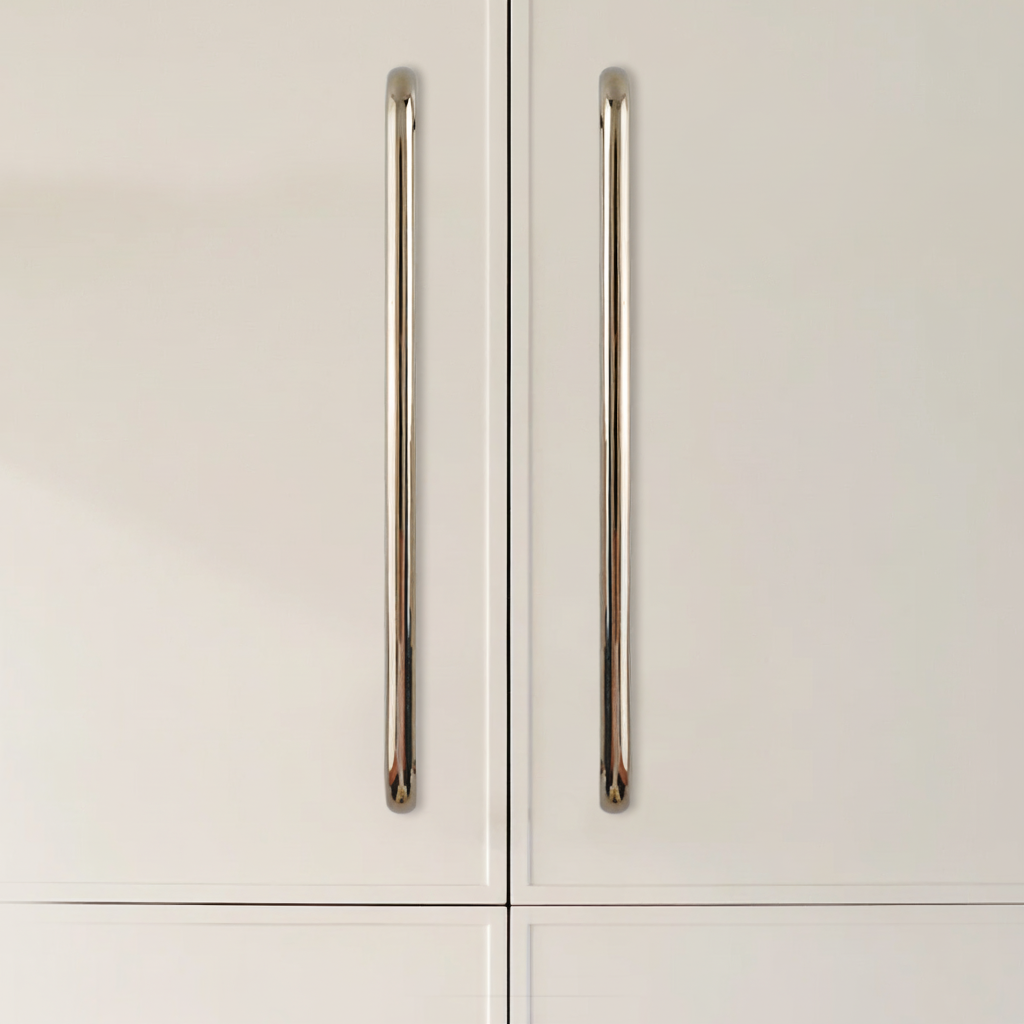

• Vertical installation on wardrobe doors (Pro Max size)

• Creating a soft, organic touch on flat-panel cabinetry

A graceful, seamless accent that softens the angles of modern design.

Installation Guide

Tools Needed

• Phillips Screwdriver (Cross-head)

• Power Drill

• Drill Bit: 3/16" (5mm) recommended (allows for slight adjustment) or 5/32" (4mm) for a tight fit.

• Measuring Tape or Ruler

• Pencil & Masking Tape (for marking without damaging the surface)

• Level (essential for handles & pulls)

Screw Sizing Chart

Determine the correct screw length based on your cabinet door thickness.⚠️ IMPORTANT ORDERING NOTE: Standard 1" (25mm) screws are included by default, as they fit most standard cabinet doors. If your door thickness requires a different screw length from the chart above, please specify the required size in the order notes (e.g., "Need 35mm screws") when placing your order.

Installation Steps

STEP 1: MEASURE & MARK

• Hold the hardware against the cabinet door or drawer to visualize the placement.

• Use masking tape on the door surface (to protect the finish) and mark the screw hole locations with a pencil.

• Tip: For handles/pulls, use a level to ensure they are perfectly straight.

STEP 2: DRILL PILOT HOLES

• Double-check your measurements.

• Drill straight through the marked points using a 3/16" (5 mm) drill bit.

• Important: Keep the drill perpendicular (90° angle) to the door surface to avoid angled screw entry.

STEP 3: INSERT SCREWS

• Insert the included mounting screws from the inside (back) of the cabinet door or drawer.

• Push them through until they protrude slightly from the front.

STEP 4: TIGHTEN & ADJUST

• Align the handle or knob with the screws on the front.

• Tighten securely with a Phillips screwdriver.

• Caution: Do not over-tighten with a power drill, as this may strip the threads or damage the cabinet finish.

💡 Pro Tips

• Wide Drawers: For drawers wider than 30 inches, we recommend installing two pulls (positioned at 1/3 and 2/3 width) for a balanced load and smoother operation.

• Positioning:

  • Slab Doors: Center the hardware vertically or place it in the corner.

  • Shaker Doors: Align the hardware on the center of the vertical rail (frame).

• Consistency: If installing multiple pieces, creating a template (jig) out of cardboard is highly recommended to ensure every handle is at the exact same height.

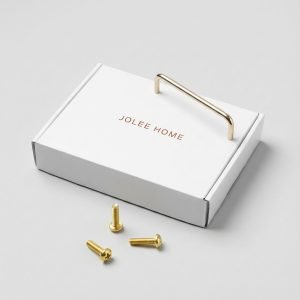

What’s Included

• Hardware piece × quantity ordered

• Mounting screws (matching quantity ordered, in two lengths for different panel thicknesses)

• Protective packaging to prevent scratches during transit

• Installation guide (digital or printed)

All screws automatically match the quantity of hardware pieces in your order.

Warranty

Your JOLEE HOME hardware is crafted to last.
We stand behind each piece with a 1-Year Limited Warranty, ensuring lasting beauty and reliable performance in everyday use.

Covered under warranty:

• Manufacturing defects

• Finish integrity under normal care

• Mechanical stability and threaded components

Not covered:

• Wear from improper installation or over-tightening

• Damage from chemical cleaners, abrasives, or moisture exposure

• Use in commercial or industrial environments

If you ever encounter an issue, we are here to help.
Reach out with your proof of purchase, and our team will arrange a prompt replacement or support solution.

Shipping and Returns

Shipping

Processing: 1–3 working days
Shipping Time: 4–15 working days
Total Delivery: 5–18 working days

U.S. Shipping Rates:

• <$100: $6

• $100–$200: $10

• $200–$300: $16

• >$300: Free Shipping

Remote areas (Guam, Puerto Rico, Hawaii) may require extra fees.

Returns (30 Days)

• Return new & unused items within 30 days.

• We cover return shipping for defective / wrong items.

• Customer covers return shipping for all other reasons.

Start a return: support@joleehome.com
