Description

Architectural Rhythm

Drawing on the timeless elegance of classical order and Art Deco detailing, the Doric collection brings a sophisticated, rhythmic quality to modern cabinetry. Milled from solid brass and finished in a radiant Polished Champagne Gold, the series features a mix of tactile forms: substantial bar handles with reeded cylindrical ends, a matching T-bar knob, and a solid cylindrical knob with vertical fluting. This cohesive suite allows for a textured, “jewelry-like” curation across drawers and doors of all sizes.

• Type: Cabinet Handle / Knob Collection

• Finish: Polished Champagne Gold

• Installation: Single-Hole / Two-Hole (Variable Centers)

• Dimensions:

  • Round Knob: Head Ø 1.10″ / Base Ø 0.75″ / Height 1.10″

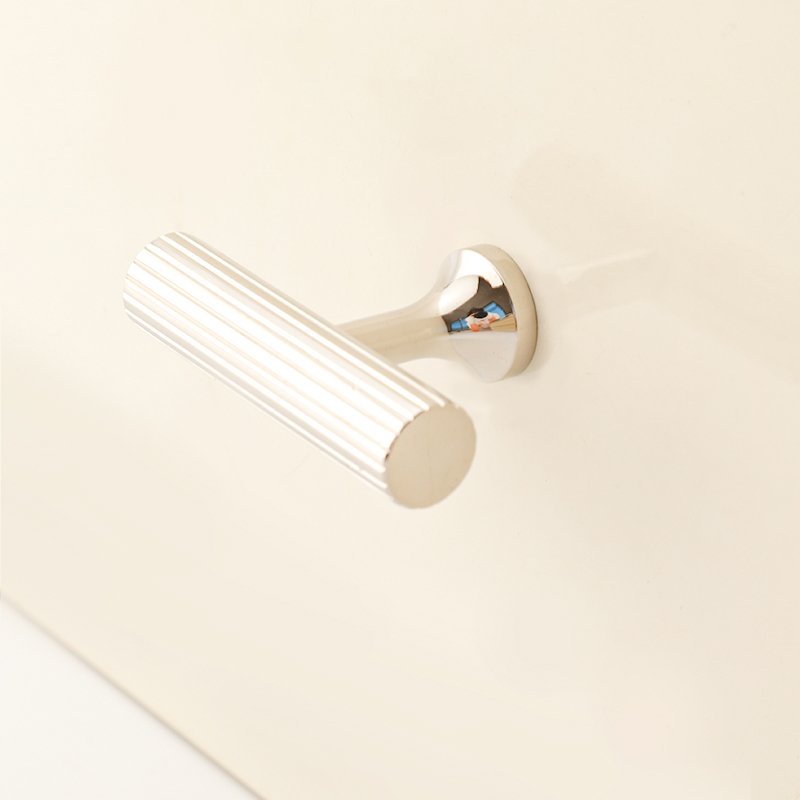

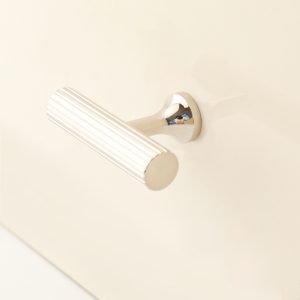

  • T-Knob: Overall Length 1.97″ / Base Ø 0.59″ / Height 1.30″

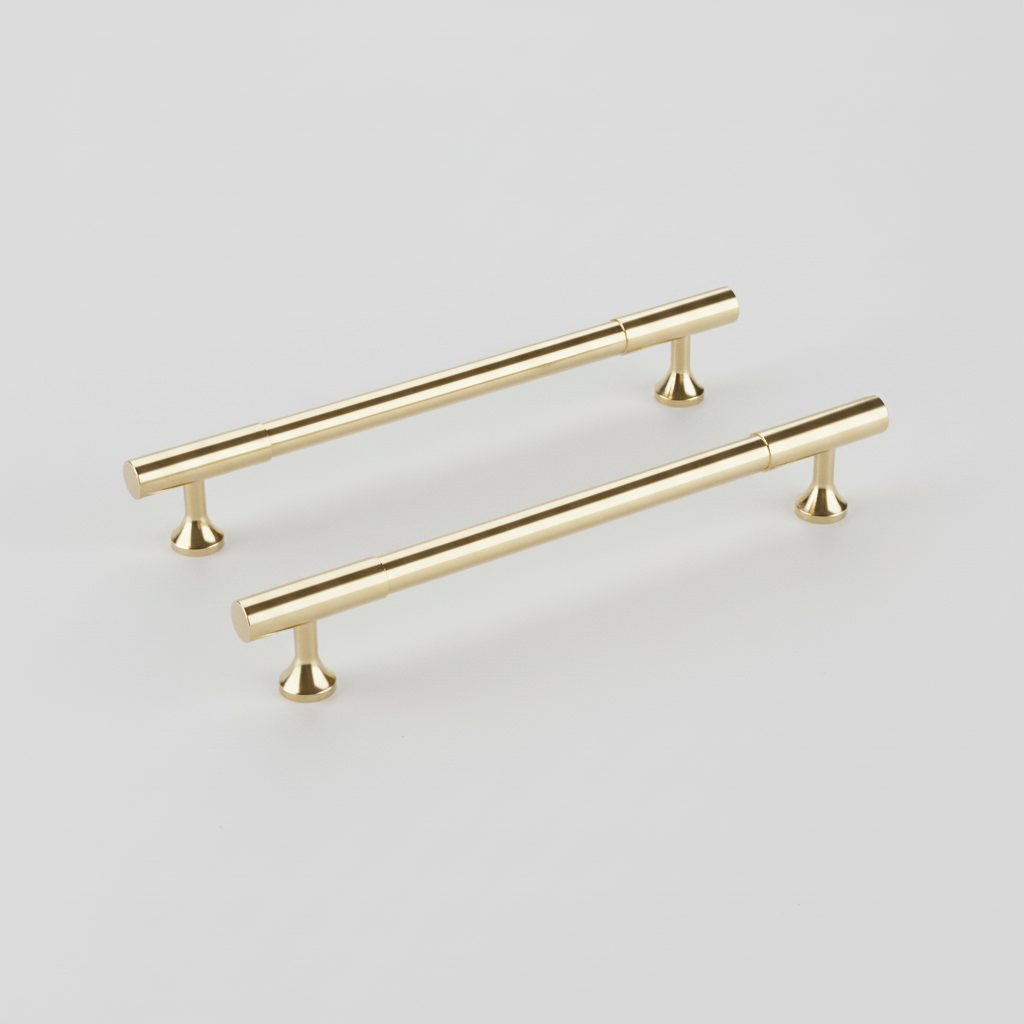

  • Medium Handle: Centers 5.04″ / Overall Length 6.22″ / Height 1.30″

  • Large Handle: Centers 6.30″ / Overall Length 7.80″ / Height 1.30″

  • Extra Large Handle: Centers 8.82″ / Overall Length 10.00″ / Height 1.30″

• Material: Solid Brass

• Recommended For: Kitchen Cabinets, Pantry Doors, Wardrobes, Dressers, Vanities

• Installation Kit: Included

Ideal for:

• Art Deco or Neoclassical inspired interiors

• Mixing and matching (e.g., Knobs on upper cabinets, Handles on drawers)

• Adding a “jewelry” element to flat-panel cabinetry

• Renovations requiring a complete hardware suite with consistent texture

A refined accent that balances smooth lines with intricate machined detail.

Installation Guide

Tools Needed

• Phillips Screwdriver (Cross-head)

• Power Drill

• Drill Bit: 3/16" (5mm) recommended (allows for slight adjustment) or 5/32" (4mm) for a tight fit.

• Measuring Tape or Ruler

• Pencil & Masking Tape (for marking without damaging the surface)

• Level (essential for handles & pulls)

Screw Sizing Chart

Determine the correct screw length based on your cabinet door thickness.⚠️ IMPORTANT ORDERING NOTE: Standard 1" (25mm) screws are included by default, as they fit most standard cabinet doors. If your door thickness requires a different screw length from the chart above, please specify the required size in the order notes (e.g., "Need 35mm screws") when placing your order.

Installation Steps

STEP 1: MEASURE & MARK

• Hold the hardware against the cabinet door or drawer to visualize the placement.

• Use masking tape on the door surface (to protect the finish) and mark the screw hole locations with a pencil.

• Tip: For handles/pulls, use a level to ensure they are perfectly straight.

STEP 2: DRILL PILOT HOLES

• Double-check your measurements.

• Drill straight through the marked points using a 3/16" (5 mm) drill bit.

• Important: Keep the drill perpendicular (90° angle) to the door surface to avoid angled screw entry.

STEP 3: INSERT SCREWS

• Insert the included mounting screws from the inside (back) of the cabinet door or drawer.

• Push them through until they protrude slightly from the front.

STEP 4: TIGHTEN & ADJUST

• Align the handle or knob with the screws on the front.

• Tighten securely with a Phillips screwdriver.

• Caution: Do not over-tighten with a power drill, as this may strip the threads or damage the cabinet finish.

💡 Pro Tips

• Wide Drawers: For drawers wider than 30 inches, we recommend installing two pulls (positioned at 1/3 and 2/3 width) for a balanced load and smoother operation.

• Positioning:

  • Slab Doors: Center the hardware vertically or place it in the corner.

  • Shaker Doors: Align the hardware on the center of the vertical rail (frame).

• Consistency: If installing multiple pieces, creating a template (jig) out of cardboard is highly recommended to ensure every handle is at the exact same height.

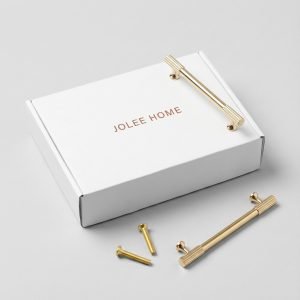

What’s Included

• Hardware piece × quantity ordered

• Mounting screws (matching quantity ordered, in two lengths for different panel thicknesses)

• Protective packaging to prevent scratches during transit

• Installation guide (digital or printed)

All screws automatically match the quantity of hardware pieces in your order.

Warranty

Your JOLEE HOME hardware is crafted to last.
We stand behind each piece with a 1-Year Limited Warranty, ensuring lasting beauty and reliable performance in everyday use.

Covered under warranty:

• Manufacturing defects

• Finish integrity under normal care

• Mechanical stability and threaded components

Not covered:

• Wear from improper installation or over-tightening

• Damage from chemical cleaners, abrasives, or moisture exposure

• Use in commercial or industrial environments

If you ever encounter an issue, we are here to help.
Reach out with your proof of purchase, and our team will arrange a prompt replacement or support solution.
